锻制管件｜Forged Pipe Fitting

产品分类 / 用途

  • 锻制管件｜Forged Pipe Fitting

    Forged Pipe Fitting Specifications:

    Size/尺寸1/8″~4″ (DN6~DN100)
    Class/压力等级2000 LBS, 3000 LBS, 6000 LBS
    Type/连接形式Threads: American National Standard Taper Pipe Threads,
    NPT(ANSI/ASME B1.20.1-1983),
    Also available in other thread forms: Rc, Rp, BSP, BSPT,BSPP and in any combination.
    Surface Treatment/表面处理Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Soldering,Darken,
    热浸镀锌，环氧树脂和FBE涂层，电抛光，喷砂，发黑
    Materal/材质Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel
    Manufacturing process/制造工艺Cutting, Heat treatment, Forging, Machining,
    锯切、热处理、模锻、机加工
    Manufacturing Standards/制造标准ASME 16.11, GB/T14383-2018，BS-3799


    Forged Pipe Fitting Material Grades:

    Stainless Steel/不锈钢ASTM A182 F304, 304L, 316, 316L,310S, 316Ti,317L
    Duplex & Super Duplex Steel/双相钢 ASTM A 182 – F51, F53, F55, S31803, S32205, S32550, S31254, SMO254, S32750, S32760, S32950.
    Carbon Steel/碳钢ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2
    Alloy Steel/合金钢 ASTM / ASME A 182, ASTM / ASME F5, F9, F11,F22, F 91
    Copper Alloy Steel/铜合金Copper Alloy Steel Forged Threaded 90 Deg Elbow : ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)
    Nickel Alloy/镍合金 ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)

    Forged Pipe Fitting Dimesions:

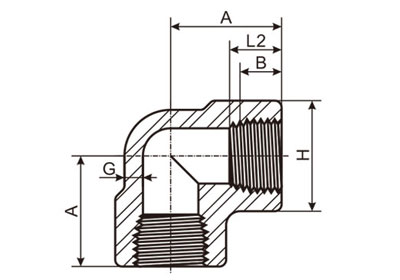

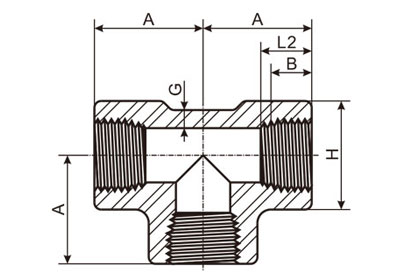

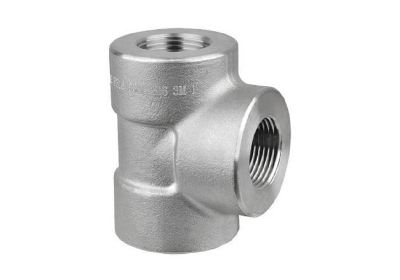

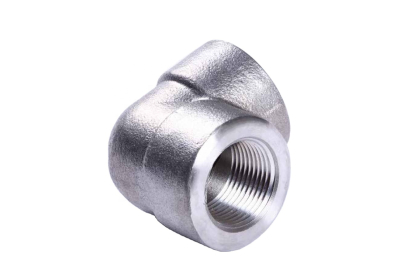

    90°螺纹弯头螺纹等径三通




    Threaded Pressure Class Pipe Schedule
    Class 2000S80/XH
    Class 3000S160
    Class 6000XXH


    DNNom.
    Pipe
    Size    		Center to End
    Elbow,Tee,Cross
    A    		Center to End
    45°Elbow
    C    		Outside Diameter
    Of Band
    H    		Minimum Wall
    Thickness
    G    		Length Of
    Thread
    Min.(1)
    200030006000200030006000200030006000200030006000BL2
    61/8"2121251717192222253.183.186.356.46.7
    81/4"2125281719222225333.183.36.68.110.2
    103/8"2528331922252533383.183.516.989.110.4
    151/2"2833382225283338463.184.098.1510.913.6
    203/4"3338442528333846563.184.328.5312.713.9
    251"3844512833354656623.684.989.9314.717.3
    321-1/4"4451603335435662753.895.2810.591718
    401-1/2"5160643543446275844.015.5611.0717.818.4
    502"60648343445275841024.277.1412.091919.2
    652-1/2"768395525264921021215.617.6515.2923.628.9
    803"86951066464791091211465.998.8416.6425.930.5
    1004"1061141147979791461521526.5511.1818.6727.733
    (1)Dimensions in Millimeters.
    (2)Dimensions refer to ANSI B16.11
    (3)Dimensions B is minimum length of perfect thread.
    The length of useful thread(B plus threads with fully formed roots and flat crests) shall not be less than L2 (effective length of external thread) required by American National Standard for pipe threads(ANSI/ASME B1.20.1)
    (4)Dimensions of BSP and PTare available if required.
    (5)Dimensions may vary according to the customer's and manufacturer's requirement.
